CA-660

Name: CA-660
Brand: Sysmex

Loading 3D-Element

Complete profiles, robust and automated

Analyser demonstrates proven reliability
Uses clotting chromogenic and immuno-turbidometric methodologies
Routine and specialist testing; up to 60 samples/hour
Colour LCD touch screen and integrated barcode reader
Can be interfaced bi-directionally

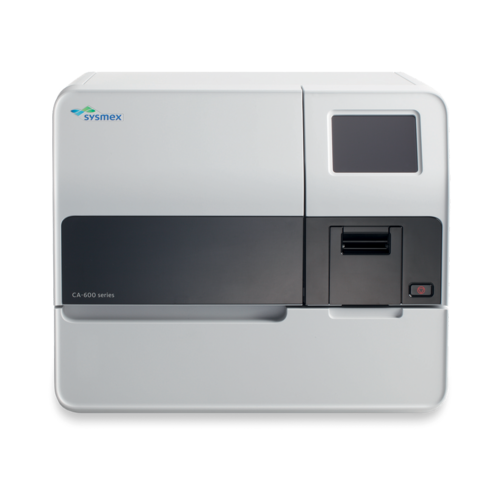

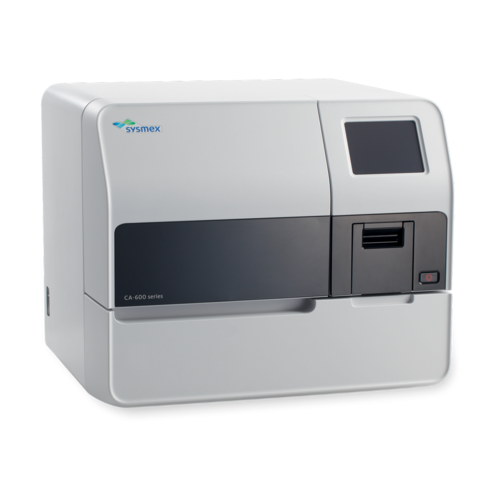

The CA-660* is a compact, fully automated coagulation analyser. It combines proven and successful characteristics – such as the optical detection technology and the reagent system of its predecessors – with new features. In addition to routine testing, it also offers specialty coagulation testing such as D-dimer, factor assays, thrombophilia and von Willebrand Factor activity. It therefore provides a complete patient profile.

It serves as a great primary analyser for low-volume haemostasis laboratories. Or as a powerful backup instrument in larger labs. The CA-660 has been designed in line with our advanced Silent Design concept, is of solid construction, hard-wearing and robust. And with its reliable performance, it is the perfect choice whether as a main analyser or as a back-up analyser.

Technical Specifications

Detection principles	clotting: scattered light detection method chromogenics: colorimetric method immunoassay: latex-enhanced turbidimetric method
No. of detector channels	clotting: 4 channels chromogenics: 1 channel immunoassay: 1 channel
Parameters	clotting PT, APTT, Fbg, TT, Coagulation Factor Assays II, V, VII, VIII, IX, X, XI, XII, Lupus Anticoagulant (screening and confi rmation), Protein C, Batroxobin chromogenics AT III, Plasminogen, 2-antiplasmin, Protein C, Heparin immunoassay, D-dimer, vWF: Ag
Throughput	max. 60 tests per hour
Test protocols	up to 14 programmable
STAT	1 dedicated position
Sample volumes	min. 50 μL (PT, APTT, TT) min. 10 μL (Fbg, AT-III) min. 5 µL (factor assays) min. 8 µL (Innovance D-dimer)
Auto-dilution function	for accurate measurement of abnormal fibrinogen or D-dimer levels
Reagent capacity	13 positions (4 cooled and 3 dedicated to diluents, bu_ ers or cleaning reagents)
Quality control	xbar / L-J control: 6 files at 180 points, 14 parameters
Data storage	up to 600 samples / max. 3,000 tests
Interfaces	colour LCD touch screen (user interface) built-in thermal printer, prints data and graphics built-in barcode reader for samples and STAT 2D hand-held barcode reader for reagents (ISI, lot#, expiry date), calibrators (assigned value, lot#, expiry date), controls (target/limit, lot#, expiry date), samples/STAT (for sample search) (optional) SNCS capability (dedicated LAN port) LIS (serial)
Dimensions / weights main unit	w x h x d [mm] / [kg] 566 x 490 x 490 / approx. 42
