CellaVision DC-1

Name: CellaVision DC-1
Brand: Sysmex

CellaVision® DC-1 - Digital cell morphology

Digital cell morphology imaging device for blood smears
Connectivity that facilitates remote collaboration and validation of results
High-quality images capture all cellular details
Automate the analysis of WBCs, RBCs and PLTs

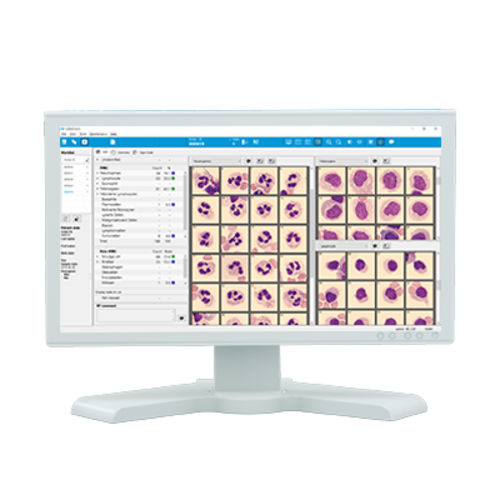

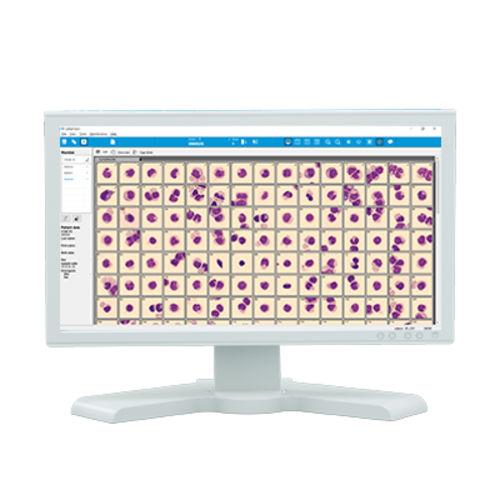

Cell images can be viewed and compared side by side

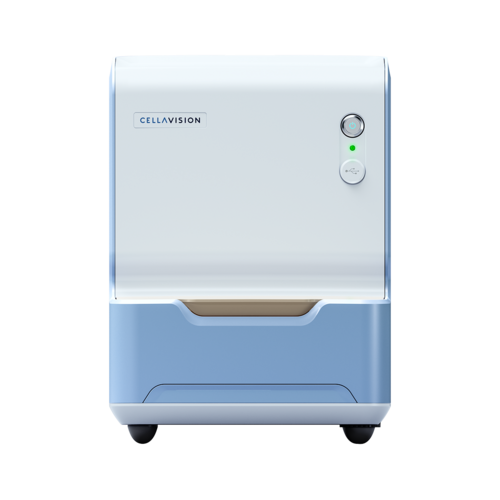

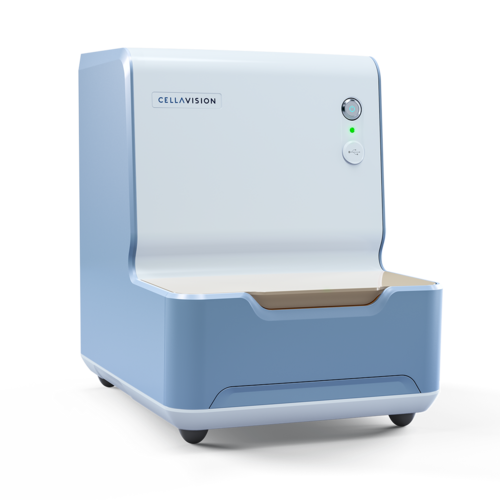

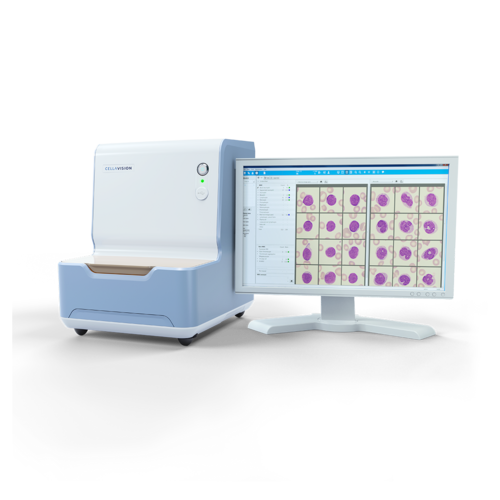

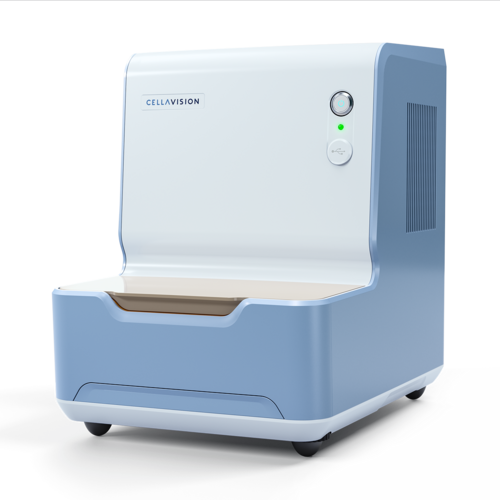

The CellaVision^® DC-1 is a stand-alone haematology analyser that performs blood cell differentials. It offers a suitable solution for laboratories with small workloads. The analyser consists of an automated microscope, a high-quality digital camera and a computer system that uses artificial intelligence to locate, digitally capture and pre-classify cells from stained blood smears. WBC, RBC and PLT images are stored, together with differential results, in a database.

Features

Smear Workflow

The RAL StainBox is a part of the Smear Workflow concept, which optimises the preparation of peripheral blood smears for automated digital morphology. It comprises the RAL SmearBox and RAL StainBox with methanol-free reagents, combined with the CellaVision^® DC-1. The concept seamlessly covers the whole haematology workflow so that you can provide results with consistently high quality.

Technical Specifications

Dimensions in mm (W x D x H)	280 x 390 x 370 mm
Weight	11.0 kg
Capacity	1 slide
Immersion Oil	Manually
Analysis	17 WBC classes, 6 RBC abnormalities, PLT estimation
Throughput	Up to 15 slides per hour (based on a 100 WBC differential, RBC morphology and PLT estimation)
Storage	Up to 1,500 slides in one database (unlimited on secondary storage)
Slide preparation	RAL SmearBox / StainBox
