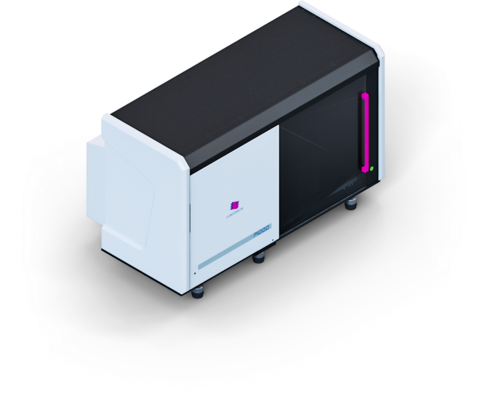

Pannoramic 1000

The Pannoramic 1000 has been developed especially for routine histopathology: a performance package that satisfies the most exacting requirements.

The benefits at a glance:

The Pannoramic 1000

  • handles high sample volumes with a loading capacity of 1,000 slides and a scanning speed of 30 seconds per slide
  • offers priority slide handling for urgent cases
  • allows virtually seamless workflow integration: cartridges from all standard colour machines can be used directly
  • achieves highest scanning quality, regardless of the coverslip medium, with horizontal slide handling
  • allows fast digitisation of large area specimens by scanning double-width slides
  • offers excellent imaging quality with three high-quality objectives and thus reliable diagnosis in the virtual microscope
Technical Specifications
Technology Bright-field scanner
Objectives: 20x, 40x, 40x water immersion, 63x oil immersion (available as an optional extra from 2019)
Barcode scan: 1D and 2D
Bright-field illumination: Xenon FLASH Strobe light
Certification: CE, IVD
Resolution and magnification

Bright-field (12-MP high-performance CMOS camera with 1.6x C-mount adapter):

  • Resolution with the 20x objective: 0.24 μm (41x)
  • Resolution with the 40x objective: 0.12 μm (82x)
Capacities

Slide capacity: 1,000; option of continuous loading

Loading directly with racks from all standard colour and coverslipping machines. Accepted slide formats: 25 x 75 mm, 51 x 75 mm; 0.9 to 1.2 mm thickness

Digital storage 3DHISTECH format (MRSX), can be coded for JPG, JPG2000
Scan speed 15 mm x 15 mm (bright-field, 20x objective) 30 sec
Dimensions (W x D x H) Approx. 154 cm x 98 cm x 90 cm
Weight Approximately 200 kg
