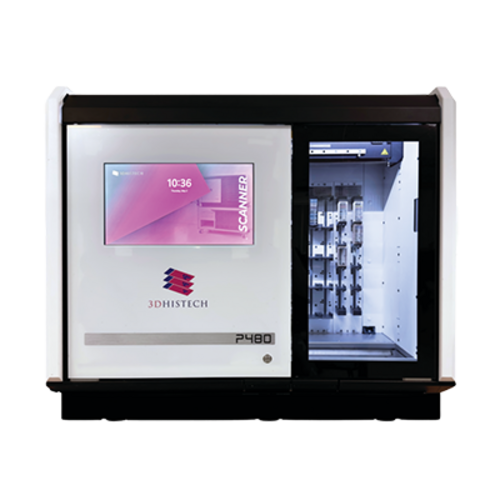

The PANNORAMIC® 480, designed by 3DHISTECH, is a compact solution tailored to meet your digital pathology needs. It offers reliable, automatic, scanning of specimens with AI-supported tissue recognition, automatic focus control, and rescanning options. The configurable rack panel supports standard and mega slides simultaneously, and rack prioritisation is possible.

The PANNORAMIC® 480 is ideal for scenarios demanding high throughput and top-notch scan quality. Key benefits include handling a high volume of specimens (up to 480 slides), rack prioritisation, seamless integration into laboratory workflows, fast digitisation of large-area sections with mega slide scanning, and excellent image quality. Internal focus quality control also ensures an accurate representation of the original slide.

Features

Handles a high volume of specimens with a loading volume of 480 slides and a throughput of up to 90 slides per hour
Offers preferential scanning of urgent cases via prioritization
Seamless integration into the laboratory workflow
Enables fast digitisation of large-area sections by scanning mega slides
Ensures excellent image quality with up to three high-quality plan-apochromat objectives
Enables reliable automatic scanning of specimens with AI-supported tissue recognition
Guarantees accurate representation of the original slide through internal focus quality control

Technical Specifications

Capacity	up to 480 slides
Speed	25 sec / slide*
Throughput:	up to 90 slides / hour*
Image capture magnification	40x / 80x or 55x / 110x
Supported racks**	3DH, Sakura, Leica
	Brightfield scanning
	Flash scanning technology
	Single- and mega slide
	Single/Extended Focus/Z Stack scanning
	Scan priority management
Flexibility	arbitrary-order scanning, normal and mega slides
	MRXS or DICOM output format
	Automated tissue detection
	All commonly used 1D and 2D barcodes read
Weight	240 kg
Dimensions (WxDxH)	1200 mm x 902 mm x 1004 mm
