Sysmex TBNK test system
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/7/8/csm_Images_TBNK_Website_images_1228x1228-2-big_e7dc5d278e.png "[.CO.UK-en United Kingdom (english)]")
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/5/6/csm_Images_TBNK_Website_images_1228x1228-3-big_fe7b0f4703.png "[.CO.UK-en United Kingdom (english)]")
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/d/5/csm_Images_TBNK_Website_images_1228x1228-1_f7c3deb81d.png "[.CO.UK-en United Kingdom (english)]")
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/7/8/csm_Images_TBNK_Website_images_1228x1228-2-big_1d35096d47.png "[.CO.UK-en United Kingdom (english)]")
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/5/6/csm_Images_TBNK_Website_images_1228x1228-3-big_dc54dda24a.png "[.CO.UK-en United Kingdom (english)]")
![[.CO.UK-en United Kingdom (english)]](/fileadmin/_processed_/d/5/csm_Images_TBNK_Website_images_1228x1228-1_663756e631.png "[.CO.UK-en United Kingdom (english)]")
Reagent system for reliable lymphocyte subset analysis - now even simpler
- Reliable analysis of T, B and NK cells and CD4+ and CD8+ T-cell subsets
- Absolute counts directly from the analyser – no counting beads required
- Streamlined workflow – from test request to validation and reporting
- Automated acquisition and analysis, and optional automation of sample preparation
Lymphocyte subset testing
Flow cytometric immunophenotyping to evaluate the percentages and absolute counts of lymphocyte subsets is a well-established test that is performed in a variety of settings. It is primarily used for monitoring CD3+CD4+ T cells in human immunodeficiency virus (HIV)-infected individuals, and also in the evaluation of other forms of immune deficiency and autoimmune diseases [1-4].
Unique features of the Sysmex TBNK test system

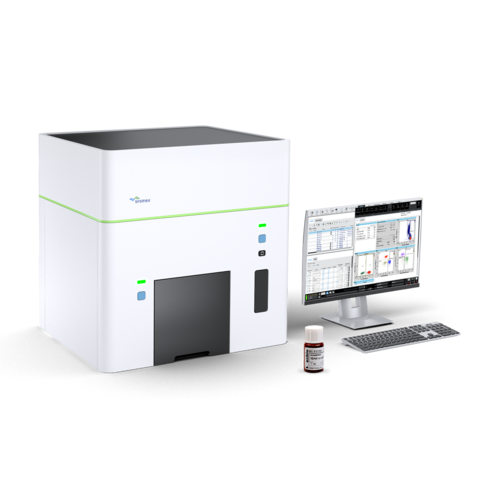

The Sysmex TBNK test system on the XF-1600 platform provides accurate counts directly from the flow cytometer, without the need for counting beads. This is made possible by the volumetric count capability of the XF-1600 based on a calibrated syringe-driven acquisition of exact sample volume for accurate white blood cell (WBC) count – technology that is inherited from Sysmex’s XN-Series haematology analysers.
The resulting absolute counts are metrologically traceable to an internationally recognised reference method for white blood cells (WBC) [5].
Your benefits in routine
- The standardisation and convenience afforded by a preconfigured solution:

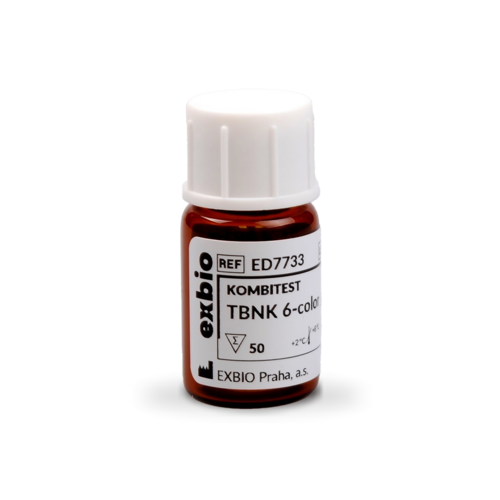

- Ready-to-use premixed reagent cocktail

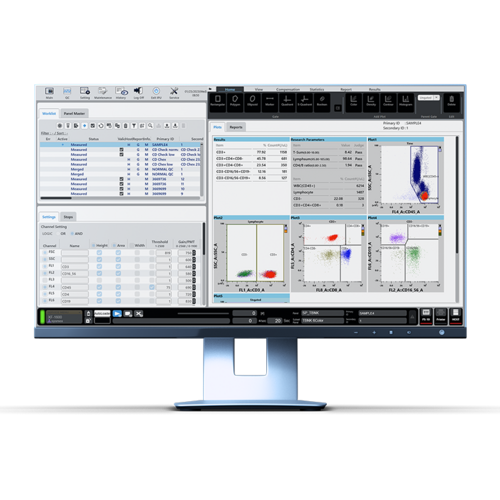

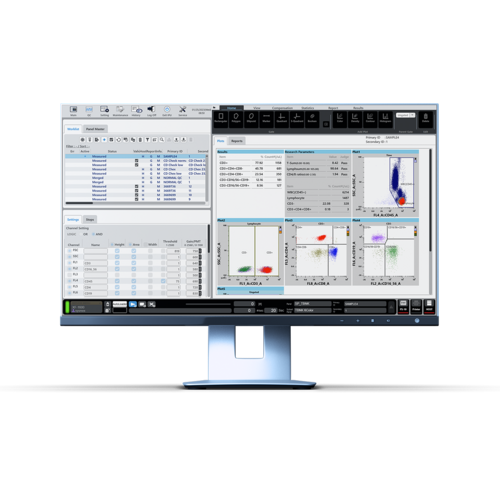

- Easy-to-use XF-1600 TBNK software – with a pre-defined template, automated gating and calculations
- The assurance of reliability through built-in quality control procedures
- Automation options - automated sample acquisition on the XF-1600 flow cytometer and optional automated sample preparation on the PS-10 sample preparation system
- Streamlined workflow – all steps from test request to reporting are streamlined by Sysmex digital solutions
1) Warnatz, K. and Schlesier, M. Flow cytometric phenotyping of common variable immunodeficiency. Cytometry, 2008;74B: 261-271. https://doi.org/10.1002/cyto.b.20432
2) World Health Organisation. Consolidated guidelines on HIV prevention, testing, treatment, service delivery and monitoring: recommendations for a public health approach. 2021. ISBN: 978-92-4-003159-3
3) McCusker C, Upton J, Warrington R. Primary immunodeficiency. Allergy Asthma Clin Immunol. 2018;14(Suppl 2):141-152. https://doi.org/10.1186/s13223-018-0290-5
4) Rabson A. Enumeration of T-cells subsets in patients with HIV infection. AIDS Clin Care. 1995 Jan;7(1):1-3. PMID: 11362161.https://pubmed.ncbi.nlm.nih.gov/11362161/
5) Ward RY, Stevens M, Bashir S. Metrological traceability in flow cytometry? Evaluation of a new volumetric method for lymphocyte subsets. Int J Lab Hematol. 2023;1‐7. doi:10.1111/ijlh.1421 https://doi.org/10.1111/ijlh.14219

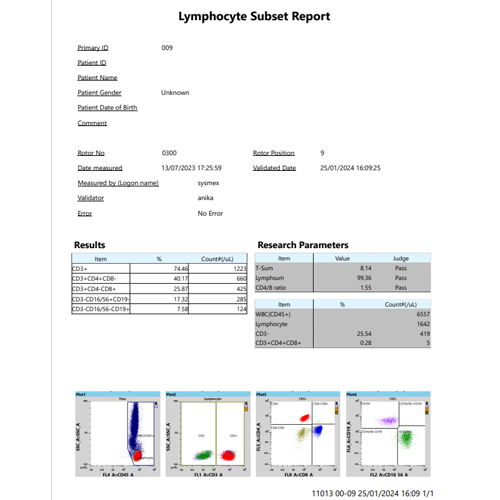

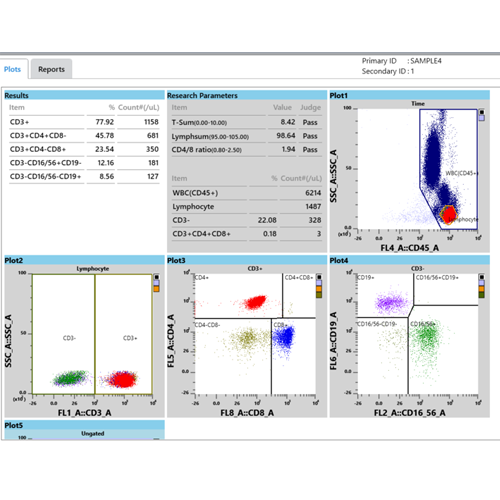

Results
| IVD parameters | Relative percentages** and absolute counts* of:
|
| Research Parameters Analysis results for these research parameters must not be used for diagnosis of patients | Absolute counts* of:
Sums and ratios
|
*Number of cells per μL
**Ratio to lymphocytes (based on a lymphocyte gate)
Sysmex UK LTD
Sysmex House
Garamonde Drive
Wymbush
Milton Keynes
MK8 8DF
0333 320 3460
TBNK basic online training
After this course you will be able to perform and interpret the TBNK application using the XF-1600. This training is intended for operators to run the TBNK application.
Product documents
Regulatory Documents
Regulatory documents, such as Instructions for Use, can be accessed with a valid My Sysmex login:
Go to My Sysmex
