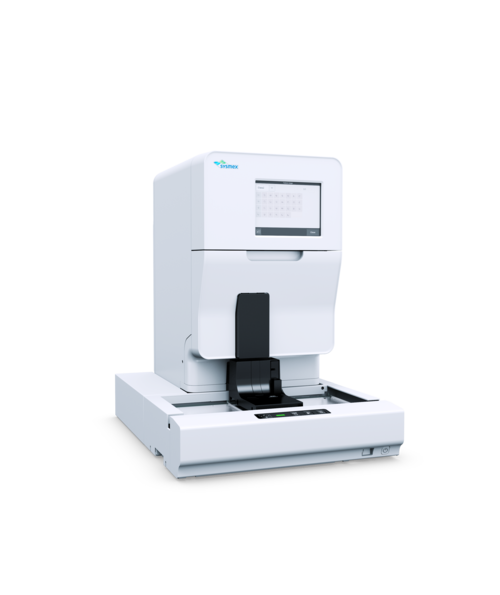

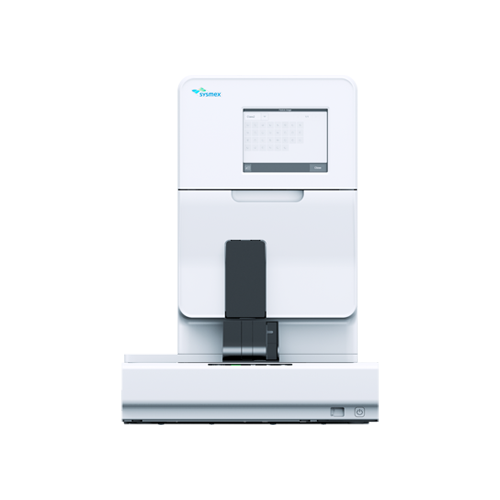

UD-10

Fully Automated Urine Particles Digital Imaging Device

Complete analysis of urine in combination with the UF-5000/4000
Fully automated digital imaging
Gives a detailed view of urine particles
Particles can be classified into 8 different classes based on size

Within the UN-Series, the UD-10 closes the total urinalysis workflow by capturing the particle images in urine samples. With its stage scanning technology, you confirm abnormal results from previous chemical and sediment analysis in a fully automated device.

Particles can be classified into eight different classes based on the size of particles. The images provide a detailed view of urine particles without performing a manual sediment or microscopy; the entire workflow can be processed automatically.

Particle images from the UD-10 help by differentiating abnormal or unclear results. Through individual rule settings with the Urinalysis Work Area Information Management System (U-WAM), you can modify workflows to meet your needs.

Features

Measurement principles

Automatic focus adjustment
Cells are settling down on the bottom of imaging cell after aspiration
Moving CCD camera captures images with pulsed LED

Modular concept solution

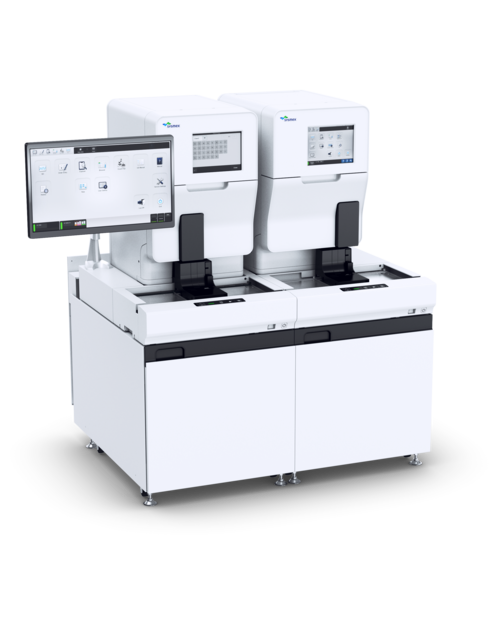

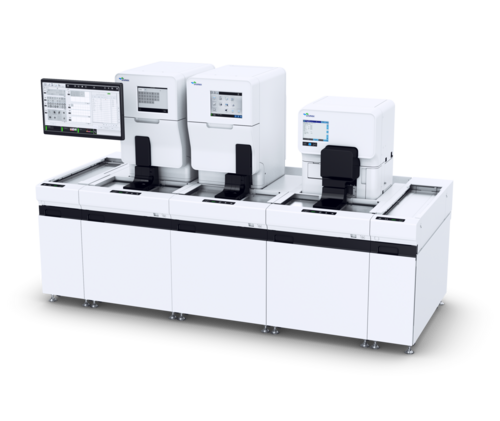

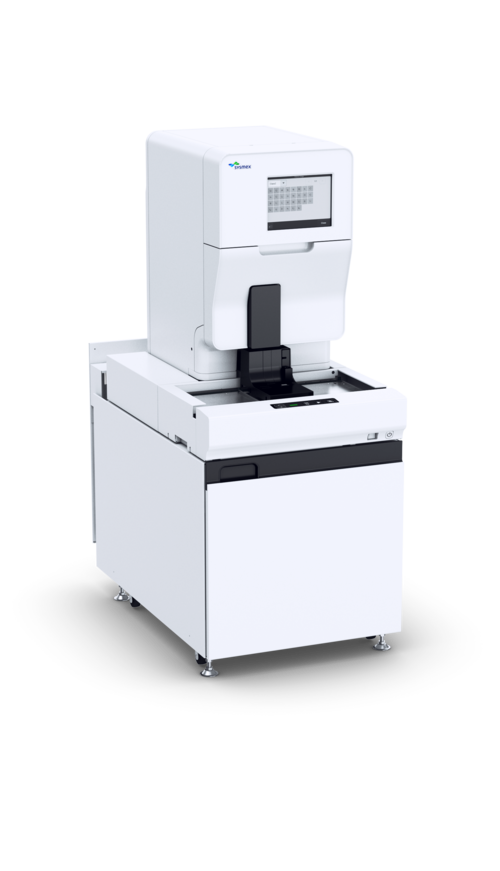

UD-10 comes always in combination with UF-5000/4000 and U-WAM (Urinalysis Work Area Information Management System). For a fully automated urinalysis workflow the UC-3500 can easily be connected.

Reagents

UF-Cellsheat
UF-Control (2 levels)

Technical Specifications

Technology:	Stage Scanning method
Aspiration volumes:	0.3 mL in sampler mode 0.3 mL in STAT mode
Minimum required volumes:	1.6 mL in sampler mode 0.6 mL in STAT mode
Throughput:	50 samples/h (normal mode) 30 samples/h (precise mode)
Parameters:	Max. 8 particle classes 40 pictures per sample (normal mode) 80 pictures per sample (precise mode)
