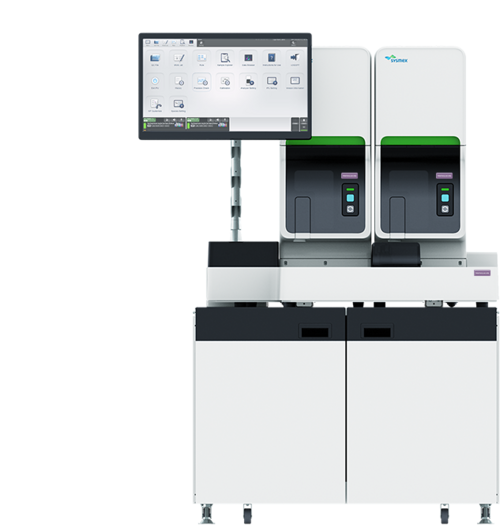

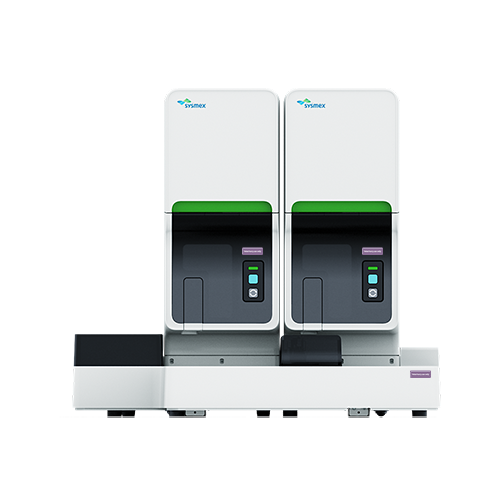

XN-2000V

It’s time for veterinary excellence

Fully customisable instrument set-up including species-specific rules for rerun and reflex analyses
Unique gating functionality to create user-defined analysis gates and new species profiles
Comprehensive list of parameters from small sample volumes with the XN-V ‘Low Aspiration’ mode
Cost-efficient and convenient internal and inter-laboratory QC combined in one run
Enhanced productivity by automated tube sampling from volumes as small as 250 μL

With the Sysmex XN-V Series, you can deliver diagnostic results of the highest quality and value. Both the XN-1000V and XN-2000V are efficient, offer consistently reliable and secure results and can be customised or up-scaled whenever you need.

Since diagnostic information needs to be provided for a wide range of species, we have predefined nineteen commonly tested animal species for you. Additionally, you can define your own settings as needed, either for research purposes and/or to provide additional diagnostic value. Online quality control ensures your new analyser is reliable and efficient. An optical platelet count, reticulocyte parameters and body fluid analysis offer additional diagnostic insight, where needed.

Features

Non-mammalian analysis

Analysis parameters	Channel
WBC	PLT-F channel
RBC	PLT-F channel
H-RBC (haemolysed RBC)	PLT-F channel
HGB	SLS-Hemoglobin method
HCT	RBC particle size distribution
MCV	RBC particle size distribution
MCH	RBC particle size distribution
MCHC	RBC particle size distribution
PLT	PLT-F channel
RDW-SD	RBC particle size distribution
RDW-CV	RBC particle size distribution
RBC-O	RET channel

Technical Specifications

Species	Mouse, rat, dog, NHP, rabbit, cat, horse, cattle, pig, mini pig, Guinea pig, gerbil, camel, dolphin, marmoset, ferret, sheep, goat, hamster, bird
Strain species	Mouse 1-15, rat 1-10, NHP 1-10, rabbit 1-5, dog 1-5, pig 1-5
Customisable free species settings	Free 1-99
Measurement modes	Whole blood (WB) mode Low aspiration volume (LA) mode Low WBC (LW) mode Pre-diluted (PD) mode Body fluid (BF) mode**
Aspiration volume	88 µL in WB and BF measurement modes 70 µL in PD measurement mode 50 µL in LA measurement mode
Throughput	XN-2000V 200 samples/h in WB mode (CBC+DIFF) 166 samples/h in WB mode (CBC+DIFF+RET) 40 samples/h in BF mode
Technologies	Fluorescence flow cytometry Hydrodynamically focused impedance measurement Cyanide-free SLS haemoglobin method Adaptive cluster analysis system (ACAS) and special three-dimensional shape recognition analysis of each WBC subpopulation

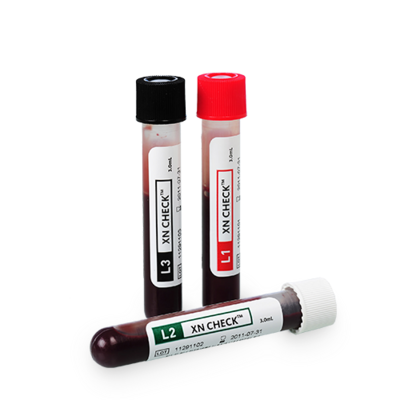

Quality control	XN CHECK XN CHECK BF**
Calibrator	XN CAL
Standard parameters	XN-CBC WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT, NRBC %, NRBC#, MicroR, MacroR XN-DIFF NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#
Optional parameters	RET RET%, RET#, PLT-O, IRF, LFR, MFR, HFR, RET-He , HYPO-He, HYPER-He XN-BF WBC-BF, RBC-BF, PMN%, PMN#, MN%, MN#, TC-BF#, RBC-BF2* PLT-F PLT-F¹, IPF¹, WBC², RBC²,,H-RBC^*,2, PLT²
Configurations	XN-1000V, XN-2000V. Both models can be equipped with individually chosen clinical insight applications RET and/or XN-BF.
Data storage	30,000 samples
Supported sample tubes	Regular tubes, raised bottom tubes (RBT), micro collection tubes
Sample security	Duplicate barcode reading
Reagent management	Available
User management	Available
Customisable rules	Available
Customisable software	Available
