XQ-320
World-leading haematology no matter where
- Twenty parameters including a dedicated neutrophil count
- Only 16 µL aspiration volume
- Optional manual discrimination within histograms for challenging samples
- Flagging system with 20 messages for more insight into the sample
- Very little maintenance – only one weekly shutdown
Excellence in quality and usability
Whether your haematology testing takes place in a laboratory, a physician’s practice lab, on a hospital ward or in any other rapid-response diagnostic setting, it should always be excellent.

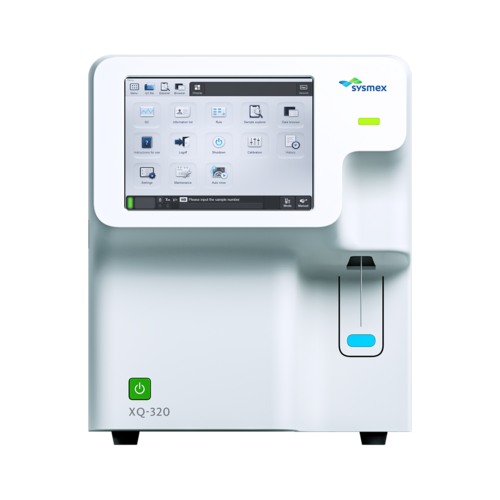

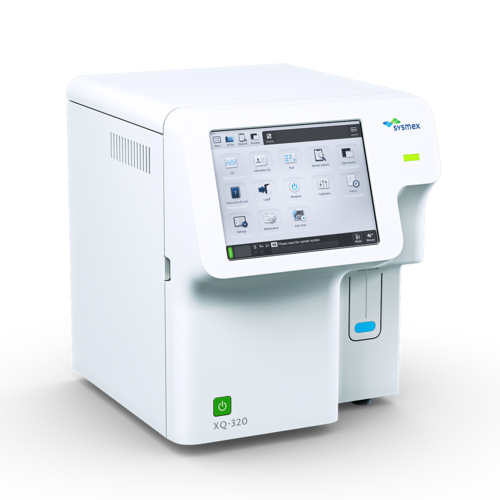

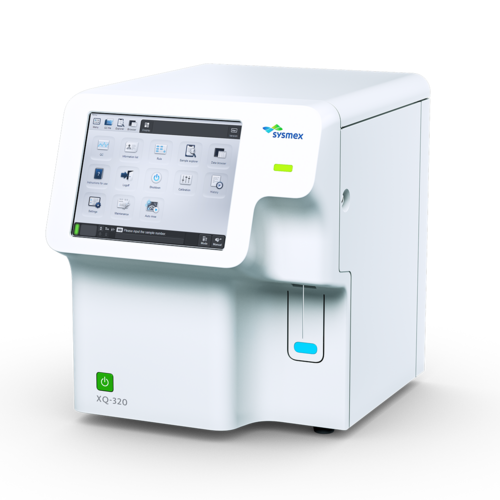

XQ-320 is the new Sysmex open-tube three-part differential analyser with a space-conscious design, very little maintenance, and flexible options for connectivity. A multitude of useful features allows it to fit in all kinds of laboratory environments and do the job you need it to do.

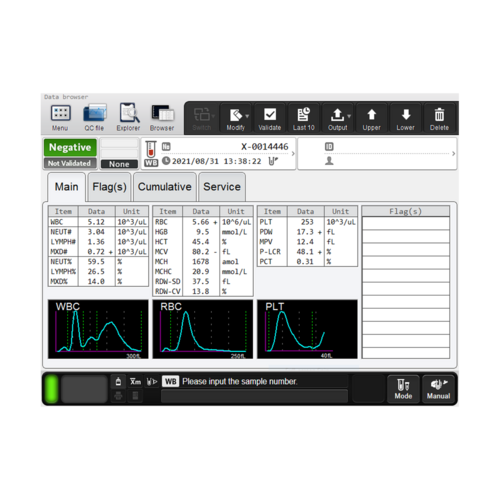

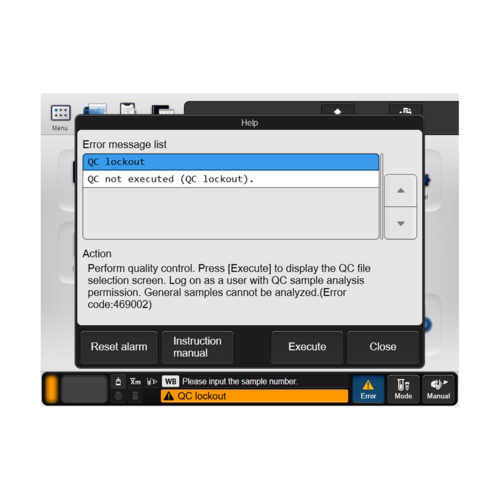

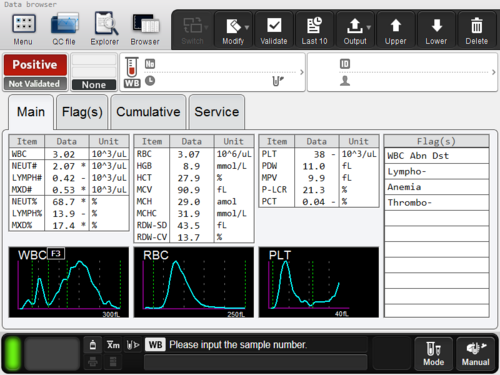

Numerical values, histograms, and flags on a single screen enable a convenient result interpretation while the advanced QC settings of XQ-320 support you in fulfilling your regulatory requirements.
| Model name / configuration | XQ-320 / stand-alone |
| Measurement principles | DC detection method (WBC, RBC/PLT) non-cyanide haemoglobin detection method (HGB) |
| Aspiration volume | 16 μL in whole blood mode, 65 μL in pre-diluted mode |
| Throughput | 70 samples/h |
| Parameters | 20 diagnostic parameters in whole blood mode and pre-diluted mode: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYMPH% (W-SCR), MXD% (W-MCR), NEUT% (W-LCR), LYMPH# (W-SCC), MXD# (W-MCC), NEUT# (W-LCC), RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT |

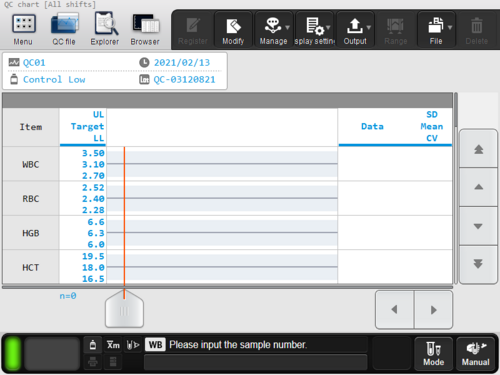

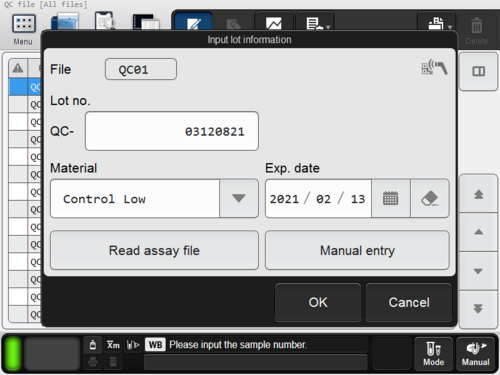

| Quality control | 99 files with 300 data sets and Levey–Jennings charts (internal QC) Optional: Caresphere™ XQC online interlaboratory comparison based on internal QC Patient sample-based quality control (XbarM) |
| Dimensions [w x h x d] / weight | approx. 365 x 440 x 450 mm / 22 kg |
Sysmex UK LTD
Sysmex House
Garamonde Drive
Wymbush
Milton Keynes
MK8 8DF
0333 320 3460
XQ-320 basic online training

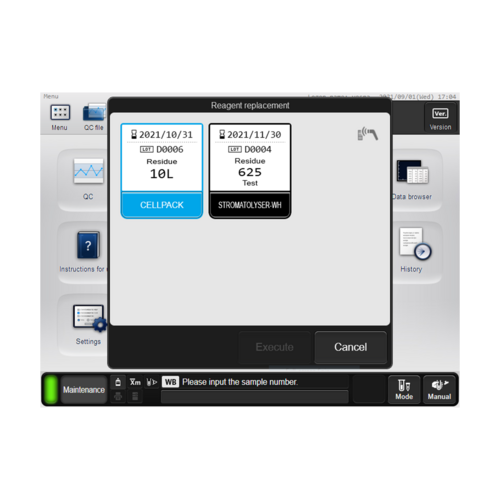

This course presents all routine operations of the XQ-320 and will enable you to get started smoothly. It contains an interactive introduction of the product and its user interface, the different steps of sample analysis up to validation of results, as well as QC, reagent management and essential maintenance.
