XQ-520

Name: XQ-520
Brand: Sysmex

World-leading haematology no matter where

Twenty parameters including a dedicated neutrophil count
Only 16 µL aspiration volume
Optional manual discrimination within histograms for challenging samples
Flagging system with 20 IP messages for more insight into the sample
Very little maintenance – only one weekly shutdown

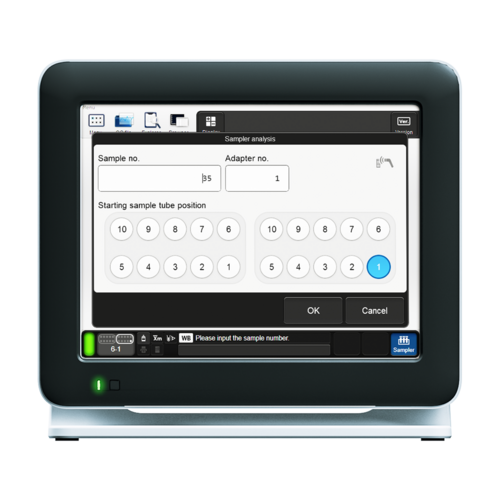

2x10-vials sampler for walk-away operation or continuous loading

Whether your haematology testing takes place in a laboratory, a physician’s practice lab, on a hospital ward or in any other rapid-response diagnostic setting, it should always be excellent.

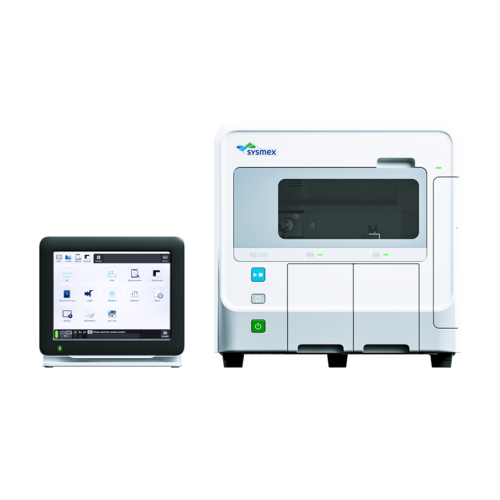

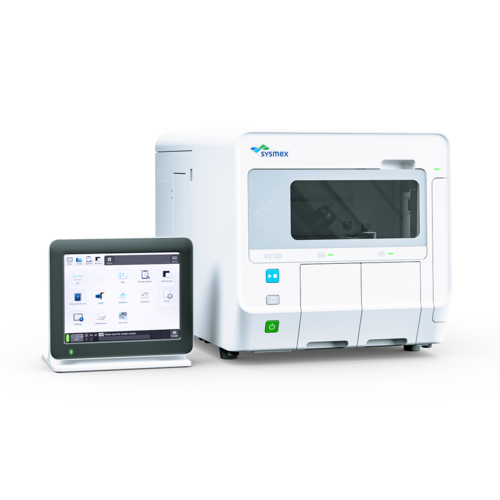

XQ-520 is the new closed tube three-part differential analyser from Sysmex with two independent samplers that can be loaded individually for continuous operation. Further, samples in single closed tubes or microtubes can be easily measured as well.

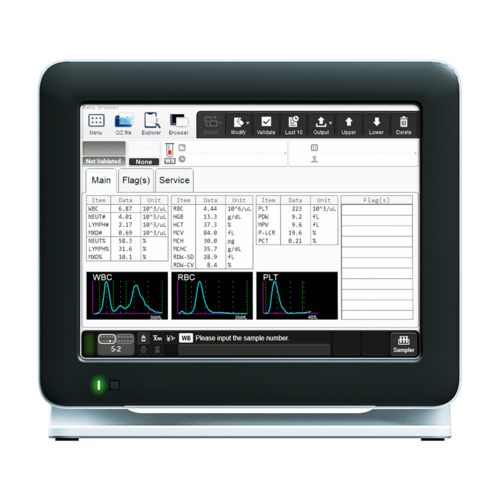

Numerical values, histograms and flags on one screen enable a convenient result interpretation while the advanced QC settings of XQ-520 support you in fulfilling your regulatory requirements.

Technical Specifications

Model name / configuration	XQ-520 / stand-alone sampler model
Measurement principles	DC detection method (WBC, RBC/PLT) non-cyanide haemoglobin detection method (HGB)
Aspiration volume	16 μL in whole blood mode, 65 μL in pre-dilution mode
Throughput	65 samples/h
Parameters	20 diagnostic parameters in whole blood mode and pre-diluted mode: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYMPH% (W-SCR), MXD% (W-MCR), NEUT% (W-LCR), LYMPH# (W- SCC), MXD# (W-MCC), NEUT# (W-LCC), RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT
Quality control	99 files with 300 data sets and Levey–Jennings charts (internal QC) Optional: Caresphere™ XQC online interlaboratory comparison based on internal QC Patient sample-based quality control (XbarM)
Dimensions /weight [w x h x d]	approx. 450 x 450 x 660 mm / 41 kg
